High frequency arcing, easy arcing;
The cutting is neat, smooth and effective;
Self locking / non self locking cutting state;
It can be used with CNC system;
Advanced IGBT inverter technology is adopted for accurate feedback control, and the current output is stable;
The cutting current is adjustable from 20a to large output current, which can meet the requirements of different workpiece materials, thickness and cutting speed, and the incision is beautiful;
It can cut a variety of metal plates such as carbon steel, stainless steel, galvanized steel, copper and aluminum.
| Product model | CUT-80 | CUT-100 | CUT-120 | CUT-160 |
| input voltage | AC380V±15% | AC380V±15% | AC380V±15% | AC380V±15% |
| Rated input capacity | 12KVA | 15KVA | 25.7KVA | 32.2KVA |
| Rated no-load duration | 60% | 60% | 60% | 60% |
| Cutting current regulation range | 20-80A | 20-100A | 20-120A | 20-160A |
| Output no-load voltage | 320V | 320V | 320V | 320V |
| Rated load voltage | 110V | 120V | 120V | 120V |
| power factor | 0.95 | 0.95 | 0.95 | 0.95 |
| Air pressure for cutting gun | 0.45 | 0.45 | 0.45 | 0.5 |
| Cutting thickness | 20 | 35 | 40 | 50 |
| Cutting gas flow | 250 | 250 | 250 | 250 |
| Enclosure protection class | IP21S | IP21S | IP21S | IP21S |
| Overall dimension | 515X275X465mm | 595X306X530mm | 595X306X530mm | 628X330X565mm |
| weight | 22Kg | 33.6Kg | 33.6Kg | 43Kg |

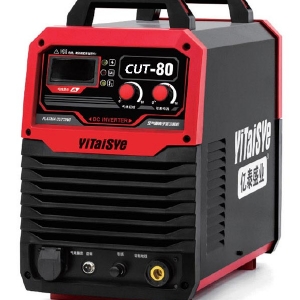

CUT-80
CUT-80 2021-3-17 Be read 591 times
