After nearly ten years of development and innovation, Shandong yitaishengye welding equipment Co., Ltd. has become a high-tech enterprise integrating professional R & D, production and sales of various inverter welding equipment. It has stood out among the national IGBT inverter welding machine manufacturers and become a leader in the domestic welding machine industry. IGBT module inverter technology and digital control system are adopted to ensure accurate and reliable control;
One machine has multiple functions, including DC pulse chlorine arc welding, DC chlorine arc welding, AC pulse chlorine arc welding, AC chlorine arc welding, manual arc welding and so on;
The front panel layout is designed in accordance with the principle of standardized operation process, with humanized overall operation and convenient and fast parameter adjustment;
It has the functions of slow current rise, slow current drop, pulse frequency, early air supply and delayed air cut-off, especially suitable for automatic welding;
Wide range of welding materials, suitable for the welding of low carbon steel, stainless steel, alloy steel, red copper, aluminum, aluminum magnesium alloy and other materials

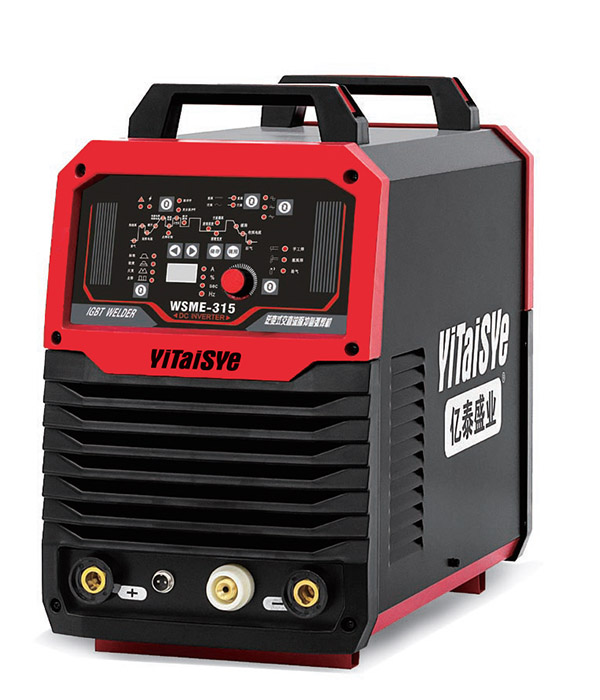

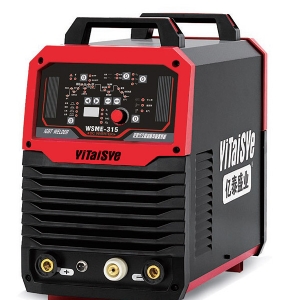

Product model | WSME-315 | WSME-500 |
Rated input voltage | 3PH380V | 3PH380V |
Power frequency | 50/60HZ | 50/60HZ |
Rated input current | 21A | 40A |
Rated input power | 13.8KVA | 26KVA |
External fuse | 40 | 60 |
No load voltage | 85V | 95V |
welding current | 15-315A | 20-500A |
Rated load duration | 60% | 60% |
Efficiency (at rated conditions) | ≥0.85 | ≥0.85 |
Insulation class | F | F |
Enclosure protection class | IP21S | IP21S |
Overall dimension | 515X275X465mm | 1040X515X970 mm |
weight | 25Kg | 95Kg |
