One machine can complete argon arc welding and manual arc welding;
Significantly reduce the copper and iron loss, improve the overall efficiency of the welding machine, and have remarkable energy-saving effect;
Digital display meter, welding current can be accurately preset;
It has the characteristics of easy arc striking, small splash, stable current and good forming.
It has a variety of protection functions, such as temperature protection, overcurrent protection, short circuit protection, etc; The inverter frequency is 20kHz, with small volume and light weight.
It has the function of automatic compensation for voltage fluctuation, strong resistance to power grid fluctuation and stable and reliable welding current;
Arc thrust can be adjusted with the length of welding cable to realize long-distance welding;
It can be widely used in the welding of various acid-base electrodes.

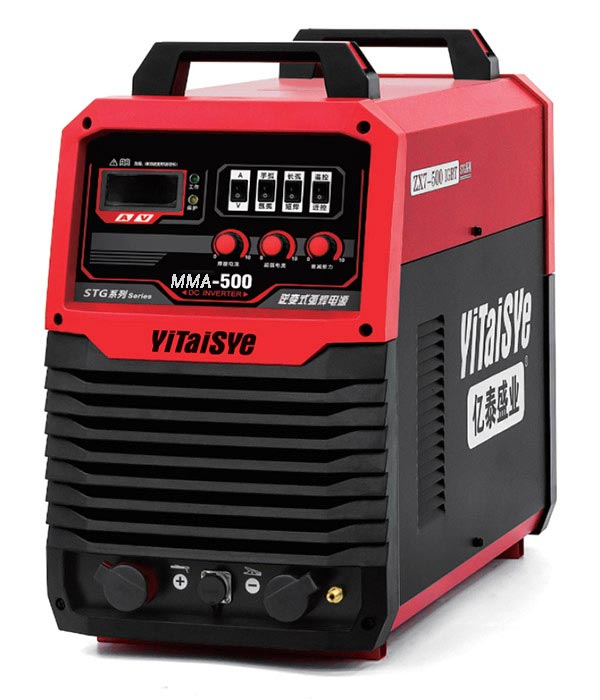

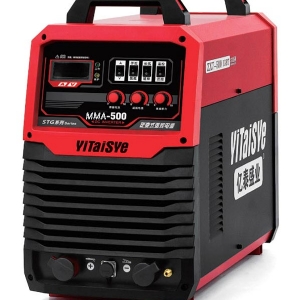

Product model | MMA-400STG | MMA-500STG | MMA-630STG |
Input power | AC380V±15% | AC380V±15% | AC380V±15% |
Rated input capacity | 20.5KVA | 25 KVA | 31.5KVA |
Input current | 32A | 38A | 47A |
No load voltage | 75V | 75V | 75V |
Load duration | 60% | 60% | 60% |
Full load efficiency | 89% | 89% | 89% |
power factor | 0.95 | 0.95 | 0.95 |
Enclosure protection class | IP21S | IP21S | IP21S |
Cooling mode | Air cooling | Air cooling | Air cooling |
Overall dimension | 595x306x530mm | 628x330x565mm | 628x330x565mm |
weight | 30Kg | 39Kg | 45Kg |
