Adopt advanced IGBT single tube inverter technology;
The control circuit adopts reliable PWM control technology, with good constant current, stable welding current, accurate control and superior performance;
High load continuity, continuous welding;
The internal structure has three prevention functions (dust-proof, moisture-proof and anti-corrosion) to improve the reliability of the machine in harsh environment;
This machine can be used for all types of welding rods, including acid, alkaline, J507, J508 and stainless steel welding rods.

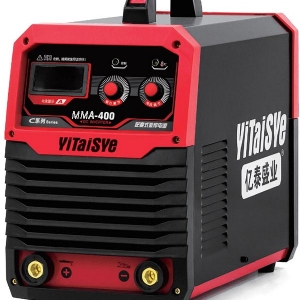

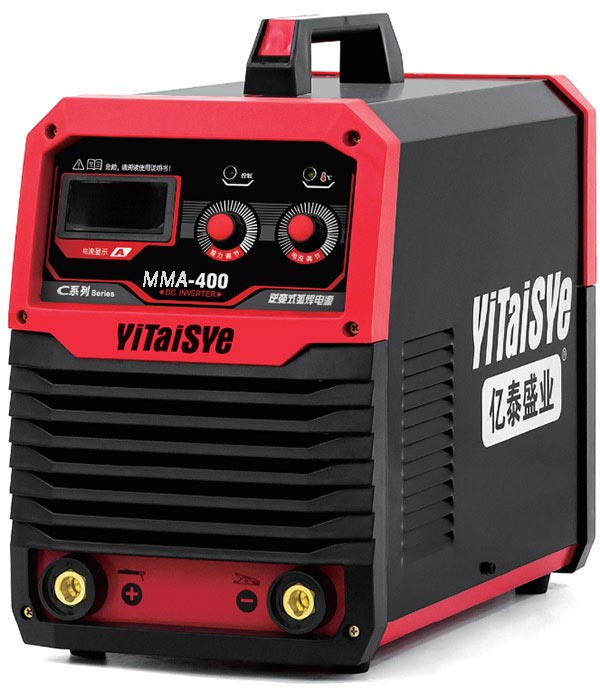

Product model | MMA-400 | MMA-400C | MMA-400DL |
Input power | AC380V±15% | AC380V±15% | AC220V/380V±15% |
Rated input capacity | 20.5KVA | 20.5KVA | 20.5KVA |
Inverter frequency | 20KHz | 20KHz | 20KHz |
No load voltage | 75V | 75V | 75V |
Load duration | 60% | 60% | 60% |
Current regulation range | 10-400A | 10-400A | 10-400A |
Suitable electrode diameter | 1.6-5.0mm | 1.6-5.0mm | 1.6-5.0mm |
efficiency | 85% | 85% | 85% |
Insulation class | F | F | F |
Overall dimension | 450 x240 x398mm | 450 x240 x398mm | 450 x240 x398mm |
weight | llKg | 11.4Kg | 12.5Kg |
